6 meter ultra long aluminum alloy CNC precision machining is a core processing technology for automation frames, new energy components, rail transit equipment and large scale industrial procurement.
Minor dimensional deviations are hardly noticeable on small aluminum parts. But for 3 6 meter ultra long aluminum profiles, errors of flatness, straightness and coaxiality get amplified along the length. When dozens of long aluminum structural parts are assembled into one machine, accumulated tolerances result in assembly jamming, component distortion and poor fitting clearance.
Common defects include workpiece bending after machining, inconsistent dimensions between two ends of one profile, fluctuating flatness over long workpieces, cutting tool vibration marks and unstable accuracy. When applied to automation equipment frames, large instrument bases, assembly line beams and laser equipment long racks, these defects may trigger equipment malfunction, rework, scrap and project delivery delays.
As a professional large gantry CNC aluminum alloy processing manufacturer, we follow standardized workflows including raw material screening, aluminum aging treatment, ultra long stroke milling, multi station finishing and multi point CMM inspection. Under defined test conditions, key dimensions of our 6 meter ultra long aluminum workpieces are stably kept within ±0.02 mm high precision tolerance.
What Does ±0.05 mm Tolerance Mean for Ultra Long Aluminum Parts
Tolerance defines the allowable gap between actual dimension and theoretical drawing dimension. Smaller tolerance value means higher machining precision and better batch consistency.
6 meter ultra long aluminum machining is far more challenging than short part production. Final accuracy is affected by internal stress of aluminum, raw material straightness, machine tool travel, cutting parameters, thermal deformation, clamping setup and workshop temperature.
Dimensional differences may occur at the head, middle and tail of a single 6 meter long aluminum profile. Subtle deviations cannot be reliably identified merely by manual measurement. We deploy coordinate measuring machines for multi position sampling inspection and compare finished parts against approved first article samples and drawing specifications to avoid human misjudgment.
Our product portfolio covers: Machined long profiles in 6061 / 6063 / 7075 aluminum alloy Automation equipment frames, new energy aluminum frames Rail transit aluminum profile components Large instrument equipment bases, assembly line aluminum beams Laser equipment long racks, non standard large size aluminum parts
Our components are widely used in industrial automation, new energy equipment, rail transit, medical instruments and overseas engineering projects.
How We Stabilize 6 meter Aluminum Machining Tolerance at ±0.05mm
High precision output cannot rely on a single operation; full process control is essential.
- Raw material preparation & stress relief: We select premium industrial aluminum profiles and perform incoming inspection. Aluminum aging treatmentreleases residual stress in advance to minimize post machining bending.

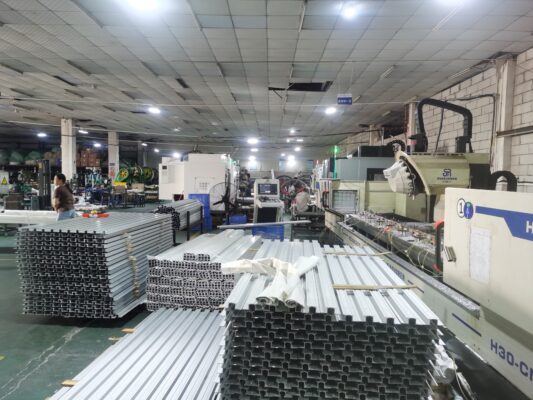

- One piece gantry CNC machining: Large gantry machines with 6 meter worktables realize large size aluminum one piece formingin one clamping setup, eliminating cumulative errors caused by segmented splicing. Optimized fixtures reduce clamping induced deformation.
- Custom cutting strategy for long profiles: Layered cutting and low speed finish milling control cutting heat and vibration to prevent thermal expansion bending and guarantee uniform surface quality across full length workpieces.
- Constant temperature production: Aluminum expands noticeably under temperature change. A thermally stable workshop lowers thermal deformation during finishing and secures ±0.05 mm high precision tolerance.
- Multi point dimensional inspection: Measurements are taken at head, middle and tail sections. All results are cross checked with first article standards to guarantee repeat order accuracy.
Core Advantages of Splice Free One Piece 6 meter CNC Machining
Compared with conventional segmented processing plus assembly, splice free aluminum profile processing preserves the full metallic matrix of aluminum material: ✅ Superior structural rigidity: No splicing gaps; better anti vibration performance during equipment operation. ✅ Reliable assembly performance: Controlled flatness and straightness simplify on site assembly and remove cumulative errors from joints. ✅ Excellent surface finish: Continuous milling reduces tool marks and facilitates follow up anodizing, sandblasting and other high gloss surface treatment. ✅ Consistent quality for bulk projects: Standardized processes plus multi point inspection unify dimensions across batches of ultra long aluminum parts.
Why 6 meter Ultra Long Aluminum Machining Is More Demanding
Machining difficulty rises with workpiece length. Short aluminum parts enjoy stable clamping and processing conditions. By contrast, 3 6 meter profiles suffer combined impacts from residual raw material stress, clamping deformation, uneven heat distribution and machine travel errors, leading to accuracy fluctuation within one single workpiece.
Therefore ultra long processing requires strict control over: raw material aging, fixture design, gantry machine calibration, cutting parameter tuning, constant temperature environment and multi point CMM inspection.
Quality Inspection for Bulk & Custom Orders
For export oriented and industrial project orders, appearance and packaging are inspected alongside dimensional accuracy. Pre shipment checks contain: Multi point dimensional tolerance verification Visual inspection (tool marks, scratches, burrs) Flatness & straightness testing Coaxiality & parallelism measurement Raw material verification Protective packaging inspection
Inspection data and quality reports can be provided per project requirements. 6 meter ultra long workpieces for export are packed in customized anti collision wooden cases to avoid bending and scratching in transit.
OEM / ODM Customization Service
Industrial clients have diverse requirements for aluminum grades, structures and surface finishes. We support drawing based CNC machining and mass aluminum processing. Parts are developed and validated according to customer drawings, samples and technical specifications.
Custom options include: Aluminum grade selection (6061 / 6063 / 7075) Max workpiece length up to 6 meters Cross section & structural design Milling, drilling & tapping, chamfering, curved surface processing Surface treatments: anodizing, sandblasting, polishing Deburring finishing, laser marking Custom export grade packaging
From standard long beams to complex integrated 6 meter frames, our end to end workflow ensures mass production precision for various industrial equipment applications.
FAQ
Q: Why do dimensional differences occur between production batches? A: Accuracy is affected by raw material stress status, fixture setup, cutting parameters, workshop temperature and machine calibration. Stable mass production demands full process quality control.
Q: Why is it harder to guarantee precision for 6 meter long profiles? A: Long workpieces are highly sensitive to stress release, cutting heat and clamping deformation. Deviations may vary along one single part, so multi point inspection is mandatory.
Q: Is one piece machining always better than segmented splicing? A: Both approaches have proper use cases. One piece forming delivers better rigidity and assembly accuracy for high end equipment; segmented splicing is an alternative for low budget, low requirement projects.
Q: Can you machine according to customer drawings? A: Yes, we offer OEM/ODM service. Parts are strictly produced per drawings and first article confirmation is required before mass production.
Looking for 6 Meter Ultra Long Aluminum Alloy CNC Precision Machining?
For equipment manufacturers, engineering contractors and hardware suppliers, dimensional consistency is critical for bulk repeat orders. We provide one piece gantry CNC service up to 6 meters, diverse surface finishes and full OEM/ODM solutions for automation, new energy and rail transit hardware.
